1775 - Lug Driller

• Removes the most difficult locking lug bolts quickly, safely and without damage to wheel or rim
• Great for all vehicles with lost or damaged locking lug bolt keys
• Operation time is approximately 8-13 minutes per wheel.
• Includes:
  • (4) nylon internal centering guides
  • (3) metal external centering guides
  • (1) metal centering guide for free turning lugs
  • (2) special ultra hard drills with tungsten carbide tips
  • (4) extractors
  • (1) impact extractor holder
  • (1) impact extractor remover
• Instructions: Tap, Drill, Extract!
• ATTENTION: Operating the tungsten carbide tip drill bits without the wheel protector centering guide(s) can increase the risk of misalignment or oscillation, which could lead to damage of the wheel, hub or even break the drill.

Click here to view product flyer

Need to remove Lug Nuts? See our complete line of Lug Nut Removers:

CTA 1463 - 5 Pc Half Metric Flip Socket Set

CTA 7307 - 7 Pc. Half Metric Flip Socket Set

CTA 1190 - 4 Pc. Flip Socket Set

CTA 4001 - 5 Pc. Emergency Lug Nut Remover Set

CTA 5700 - 6 Pc. Emergency "Twist" Socket Set

CTA 1775 Locking Lug Bolt Remover Kit

Instructions:

Tools Included in the Kit:

• (4) Nylon internal centering guides
• (3) Metal external centering guides
• (1) Metal centering guide for free-turning lugs
• (2) Special ultra-hard drills with tungsten carbide tips
• (4) Extractors
• (1) Impact extractor holder
• (1) Impact extractor remover

Step 1: Preparation

1. Safety First: Ensure the vehicle is secured on jack stands or lift.
2. Protect the Wheel: Select the correct centering guide (nylon or metal) to protect the wheel from damage and ensure proper alignment.

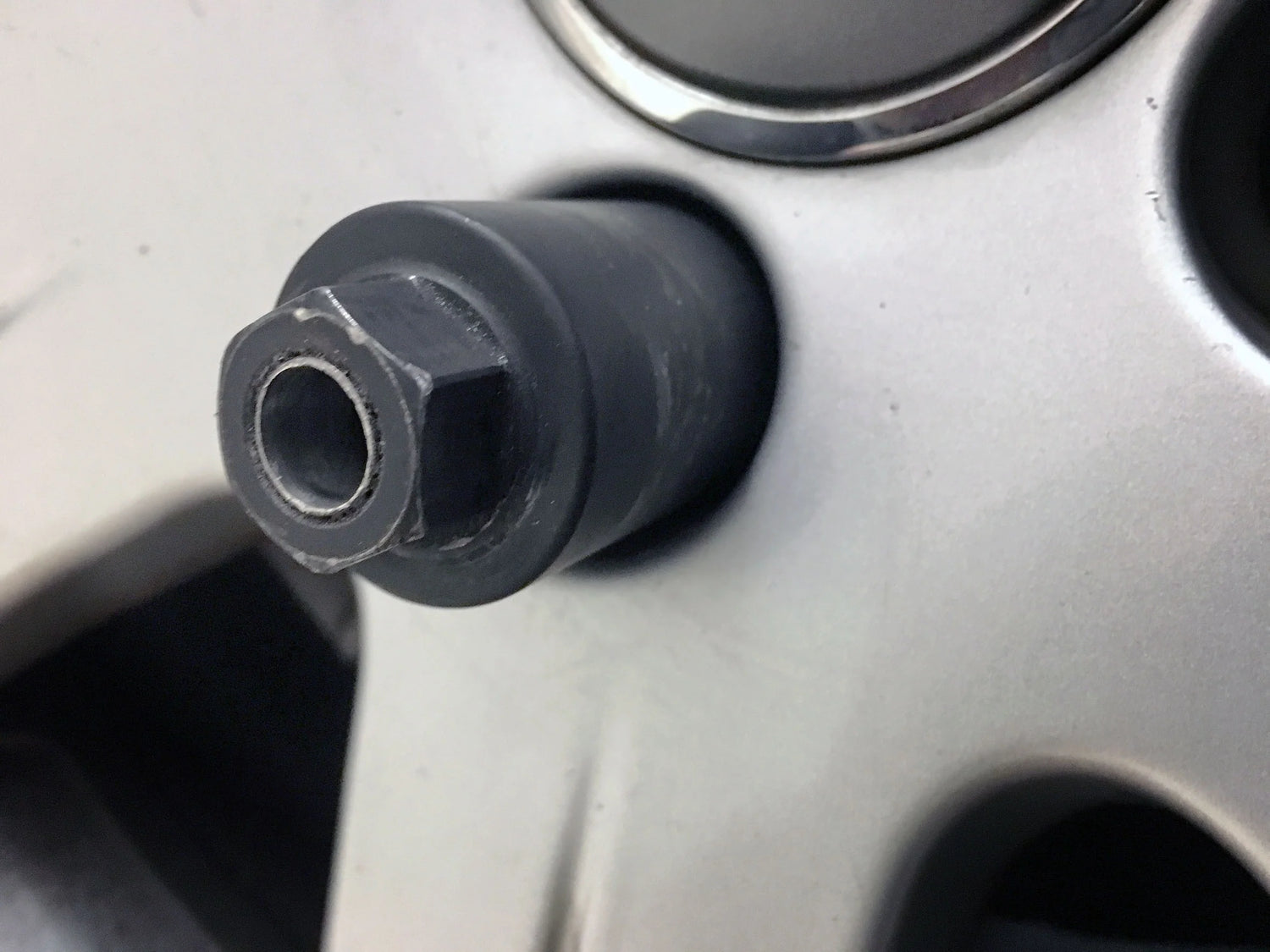

3. Position the Guide: Place the centering guide securely the wheel lug bolt cavity. Ensure it is snug and correctly aligned to prevent misalignment during drilling.

Step 2: Drilling

1. Select the Drill Bit: Use the tungsten carbide-tipped drill bit from the kit.
2. Attach the Drill Bit: Securely attach the drill bit to a power drill.
3. Drill the Lug Bolt: Carefully drill into the center of the lug bolt, using the centering guide to maintain alignment. Apply steady, even pressure while drilling.
• Note: Avoid excessive force to prevent drill bit breakage or wheel damage.
• Important: Do not operate the drill without the centering guide, as this may cause misalignment or damage.
4. Drill Until Complete: Continue drilling until the proper depth is achieved (as demonstrated in the video or product manual). Link: CTA 1775 Lug Driller Demo Video

Step 3: Extraction

1. Insert the Extractor: Select the extractor from the kit and insert it into the drilled hole.
2. Attach the Impact Extractor Holder: Place the impact extractor holder onto the extractor.
• Hammer the Extractor Holder until the Extractor Bit is fulling inserted into lug bolt.
3. Use an Impact Wrench: Attach a wrench to the extractor holder (17mm Hex).
4. Remove the Lug Bolt: Activate the wrench in a counterclockwise direction to extract the damaged or locking lug bolt from the wheel.

Step 4: Post-Extraction

1. Remove the Extractor: Use the impact extractor remover to detach the extracted lug bolt from the extractor.
2. Clean Up: Remove the centering guide and inspect the wheel and hub for any signs of damage.
3. Dispose of the Lug Bolt: Discard the damaged lug bolt and prepare to replace it with a new one.

Tips & Warnings

• Use the Correct Guides: Always use the centering guides to avoid wheel damage or drill bit oscillation.
• Avoid Excessive Force: Let the drill and extractor do the work. Forcing the tools can result in damage or breakage.
• Protective Gear: Wear safety glasses and gloves during the process.

By following these steps, you can safely and effectively remove damaged, stripped, or locking lug bolts in approximately 8-13 minutes per wheel.
