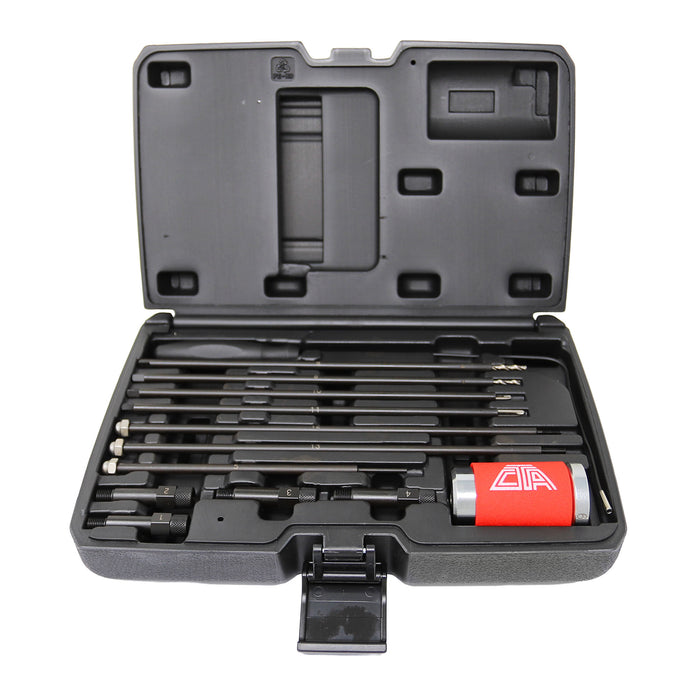

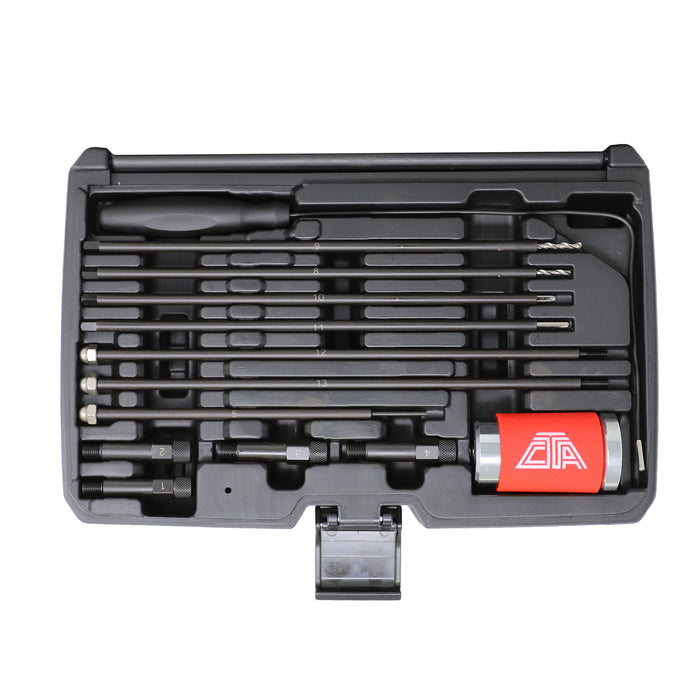

7802 - Glow Plug Tip Puller Kit

SKU 7802
Original price $329.95 - Original price $329.95
Original price
$329.95
$329.95 - $329.95
Current price $329.95
  • Removes broken glow plug tips stuck in the cylinder head. The tap, drill bit and extractor holders are fitted to the body of the original plug and slide in for perfect centering
  • Self-centering industrial taps with “stop-block” reduce the risk of damage to the cylinder head
  • Size of drill bits and the shoulder of their holder prevents risk of drilling or tapping too far into the cylinder head without prior measurement, saving time and reducing damage
  • Kit services limited clearances, making it easier to access glow plugs closest to the firewall

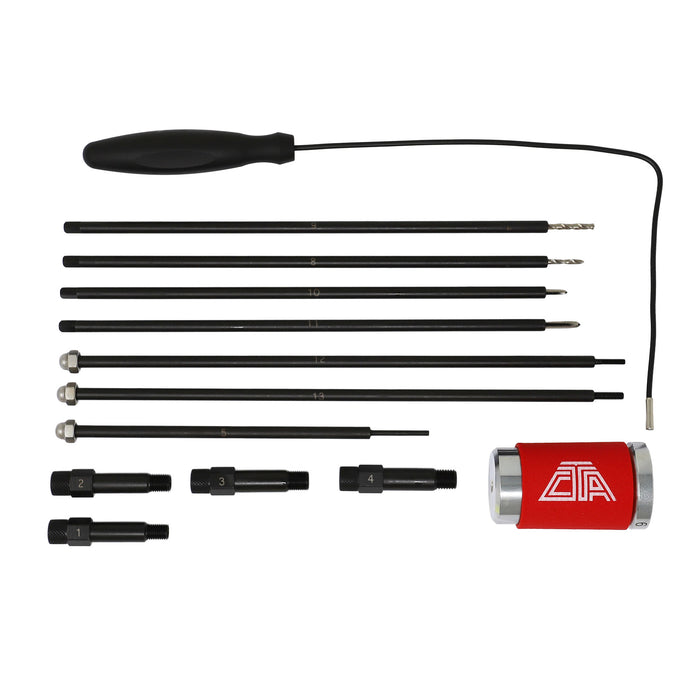

  • Includes (4) easily identifiable guides & punch for flared tips, (1) punch, (1) foam grip slide hammer, (2) drill supports, (2) tap supports, (2) puller supports & (1) magnetic flex puller
  • M8 & M10 glow plugs are the most common
  • Drills constructed of HSS 4241
  • Works on majority of Import/Euro diesel passenger vehicles but can also work on many light trucks, medium trucks, heavy trucks and construction vehicles
  • MAX 300 RPM for all drill bits

  • 7802X1A - Punch (Marked #5)

  • 7802X1D - Guide M8X100 (Marked #1)

  • 7802X1E - Guide M9X100 (Marked #2)

  • 7802X1F - Guide M10X100 (Marked #3)

  • 7802X1G - Guide M10X125 (Marked #4)

  • 7802X1M - Drill Support + Drill 3.2mm (Marked #9)

  • 7802X1N - Drill Support + Drill 2.5mm (Marked #8)

  • 7802X1O - Tap Support + Tap M3 (Marked #10)

  • 7802X1P - Tap Support + Tap M4 (Marked #11)

  • 7802X1Q - Puller Support + Puller M3 (Marked #12)

  • 7802X1R - Puller Support + Puller M4 (Marked #13)

  • 7802X02 - Magnet (Marked #14)

  • 7802X04 - Slide Hammer w/ Foam Handle (Marked #6)

Applications include but are not limited to the following:

    Make Model
    Chevrolet Silverado HD
    Chevrolet Kodiak
    GMC Sierra HD
    GMC TopKick
    GMC Savana
    Ford E-Series
    Ford F-Series
    Ford Excursion
    Ford Transit
    Dodge RAM 2500+
    Nissan Titan XD

    Interchange

    VS315 and AM-VS315, MKP600300
