To remove a fuel injector from a Ford 6.7L Power Stroke engine using either tool 3876 or Ford factory tool 310-230, follow these general steps. Keep in mind that specific details may vary, and it's crucial to consult the respective tool manuals and the vehicle's service manual for precise instructions:
Tools Needed:

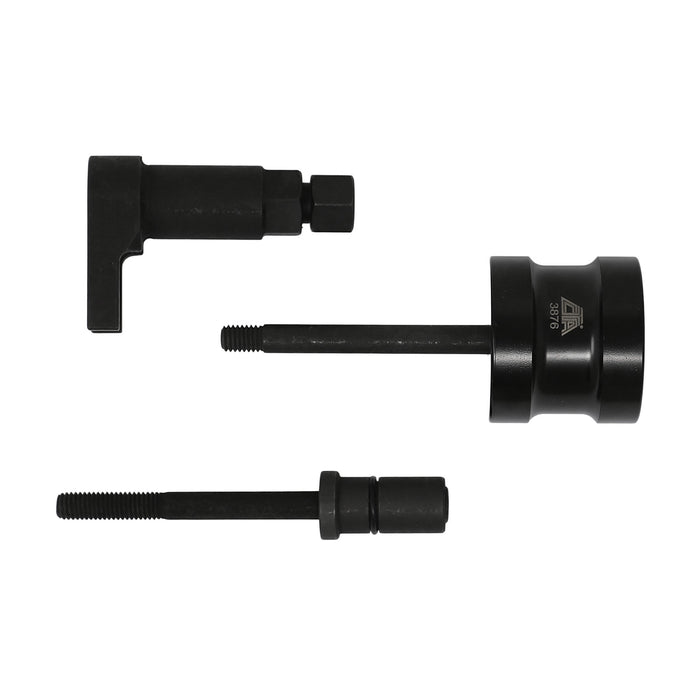

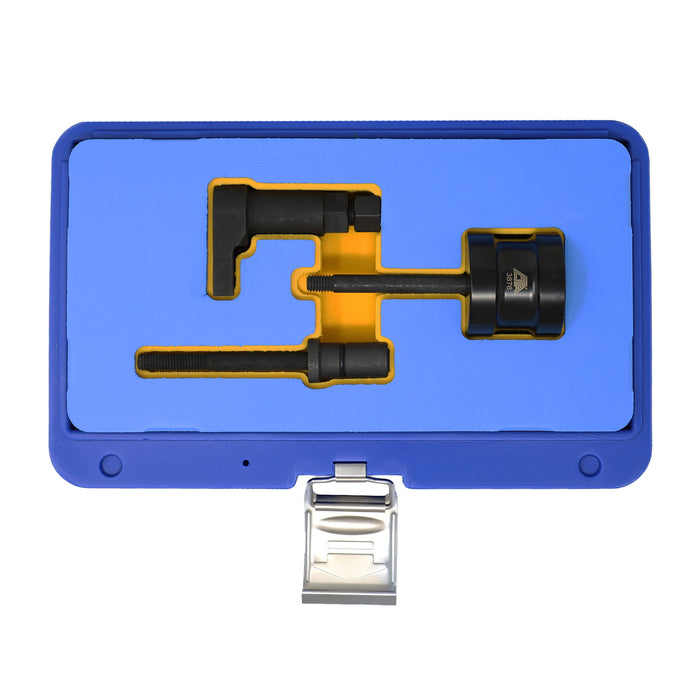

- Fuel Injector Removal Tool (3876 or Ford 310-230)
- Necessary components from the tool kit (e.g., Pulling Fork, Press Bolt, Press Bolt Guide, etc.)
- Wrench or suitable tool for turning bolts
Instructions:
- Prepare the Engine:
- Ensure the engine is turned off and cool.
- Identify the fuel injector you need to remove.
- Remove Obstructing Components (if necessary):
- Depending on the vehicle model, remove any components or covers that obstruct access to the fuel injector.
- Install Press Bolt Guide (if applicable):
- If your tool kit includes a Press Bolt Guide, install it in the designated location on the engine. This guide helps in aligning the tool during the removal process.
- Secure Pulling Fork (3876X01):
- Attach the Pulling Fork to the fuel injector, ensuring that the fork's arms securely grip the injector body.
- Install Slider (3876X06):
- Connect the Slider to the Pulling Fork. Ensure a tight fit to prevent any movement during the removal process.
- Secure Slider Bolt (3876X07):
- Use the Slider Bolt to secure the Slider in place. Tighten the bolt to ensure a stable connection.
- Attach Press Bolt (3876X02):
- Connect the Press Bolt to the tool. This bolt will be used to apply pressure and gradually lift the fuel injector.
- Apply Pressure:
- Using a suitable tool (e.g., a wrench), turn the Press Bolt clockwise to apply pressure. This pressure will lift the fuel injector from its seat.
- Monitor and Adjust:
- Monitor the removal process, and if necessary, adjust the pressure on the Press Bolt to ensure a smooth extraction. Do not force the injector if resistance is encountered.
- Remove Fuel Injector:
- Once the fuel injector is lifted, carefully remove it from the engine using suitable tools.
- Inspect and Replace (if necessary):
- Inspect the removed fuel injector for any signs of damage or wear. If necessary, replace it with a new injector.
- Reassemble Engine Components:
- If any engine components were removed, reassemble them securely.
- Test Engine:
- Before operating the vehicle, start the engine and ensure that it runs smoothly. Check for any abnormal sounds or issues.
Always follow the specific instructions provided with the tool kit and refer to the vehicle's service manual for detailed steps and safety precautions. This general guide is intended to give you an overview of the process.
