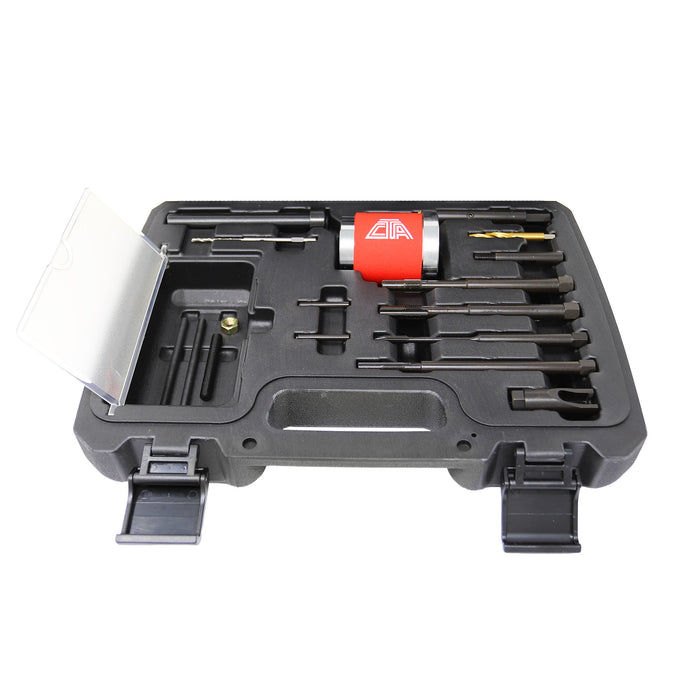

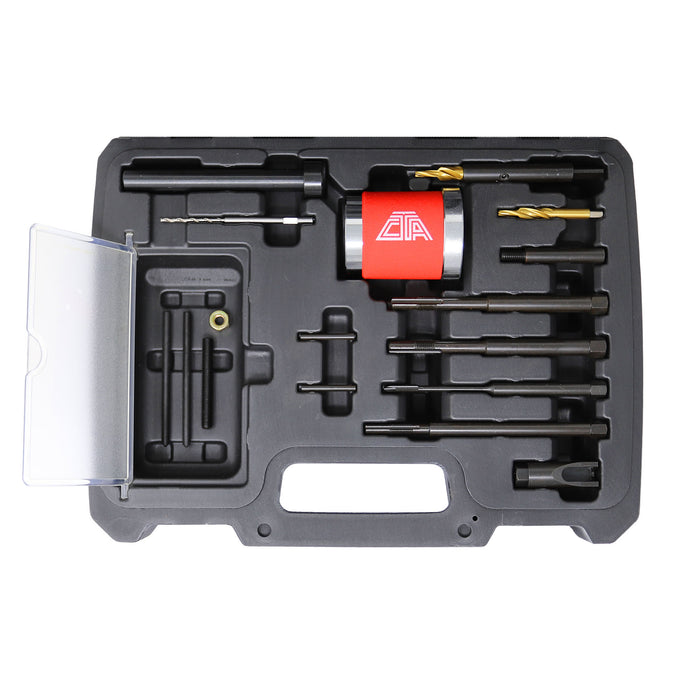

7804 - Glow Plug Puller Kit

7804 - Glow Plug Puller Kit

SKU 7804
$643.45 - $643.45
$643.45
$643.45 - $643.45
$643.45

Orders placed before 12:00pm EST Mon-Fri ship same day. Orders placed after 12:00pm EST ship next business day.

  • Removes damaged glow plugs, even when compartment is not easily accessible
  • Easy removal in narrow engine bays and engines with glow plugs on the firewall side
  • Enables removal of broken glow plugs from the top of the cylinder head without damage to other components

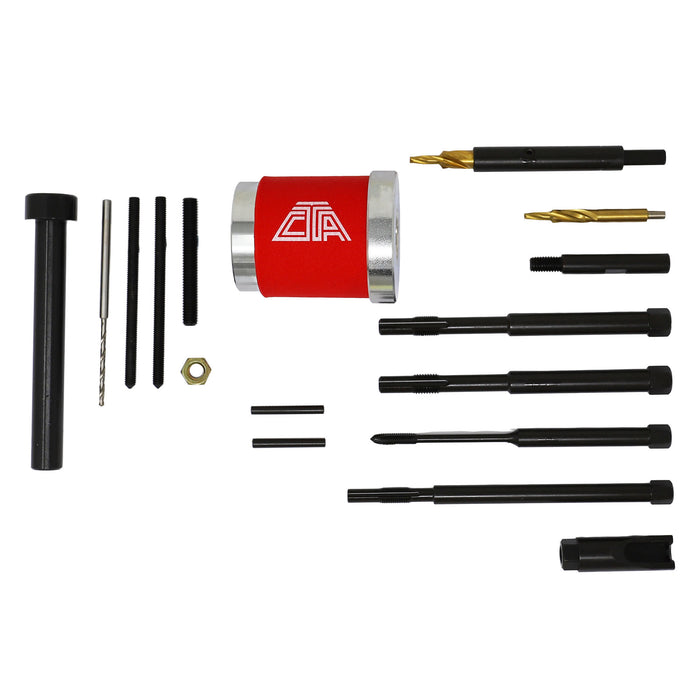

  • Includes (1) electrode puller, (1) electrode reinforced drill with (2) guides, (2) specially centered mills with one mill support preventing damage to the head, (1) tap and (1) slide hammer extractor to pull out broken glow plugs, (3) refreshing taps sizes: M8, M10x100 & M10x125 with hex drive
  • Applications include, but not limited to: Chevrolet Silverado HD, Kodiak, GMC Sierra HD, TopKick, Savana, Ford E-Series, F-Series, Excursion, Transit, Dodge RAM 2500+, Nissan Titan XD & MORE!

 

Key CTA # Description
1 7804X1A Slide Hammer Counter Weight
2 7804X1B Slide Hammer Bar
3* 7804X1C Tap M6 x 100
4* 7804X1D Thread Repair Tap M8 x 100
5* 7804X1E Thread Repair Tap M10 x 100
6* 7804X1F Thread Repair Tap M10 x 125
7* 7804X1G Milling Drill M8
8* 7804X1H Milling Drill M10
9 7804X1I Drill Holder
10 7804X1J M6 x 100 Puller
11 7804X1K Set of 2 Guides
12* 7804X1L Drill 2.5mm
13 7804X02 Plug Puller Adapter
14 7804X03 Extractor Screws (2)
15 7804X04 Hex Nut
16 7804X05 Electrode Puller Screw



WARNING: DOES NOT WORK ON 2006-2016 (6.6L DURAMAX) CHEVROLET SILVERADO, EXPRESS & GMC SIERRA, SAVANNA WITH GLOW PLUGS THAT HAVE THREADS NEAR THE MIDDLE OF BODY. PART #12639701 9G

WARNING: DOES NOT WORK ON CERAMIC GLOW PLUS.

WARNING: 300 RPM MAX SPEED FOR MILLING DRILL BITS.

Interchange

5205, MU240, and AM-3381

Damage-Free Extraction

Damage-Free Extraction

The electrode puller included is an essential tool for the extraction of glow plug electrodes. When it comes to removing glow plugs, it is crucial to extract both the outer body and the internal electrode. The electrode puller is specifically designed to securely grip and extract the electrode from the glow plug during removal process. By providing a reliable grip on the electrode, it ensures a smooth and damage-free extraction.

Versatile Extraction Methods

Versatile Extraction Methods

The kit includes refreshing taps in different sizes (M8, M10x100 and M10x25) with a hex drive. These taps are used to clean or refresh the threads inside the cylinder head before employing the slide hammer extractor. By using the appropriate tap size, you can ensure that the threads are free from debris, rust, or other obstructions that may hinder the extraction process. Refreshing the threads promotes a smoother and more secure connection between the slide hammer extractor and the glow plug.

Key Features

Smart Design

Removes glow plugs, even when compartment is not easily accessible

Efficient Removal

Easy removal in narrow engine bays and engines with glow plugs on the firewall side

No Damage

Enables removal of broken glow plugs from the top of the cylinder head without damage

Vehicle Compatibility

Applications include, but not limited to: Chevrolet Silverado HD, Kodiak, GMC Sierra HD, TopKick, Savana, Ford E-Series, F-Series, Excursion, Transit, Dodge RAM 2500+, Nissan Titan XD & MORE!
